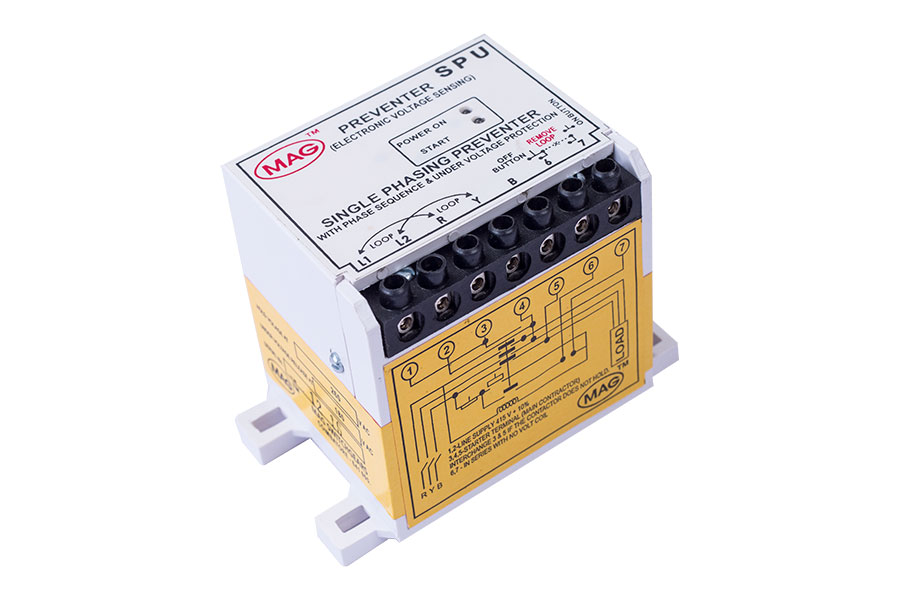

SINGLE PHASE PREVENTER UNIT DESIGNED FOR SUBM...

SINGLE PHASE PREVENTER UNIT DESIGNED FOR SUBMERSIBLE MOTOR PHASE - THREE PHASE WORKING VOLTAGE AC 415 V RELAY - 7 AMPS DELAY TIME IN- 24 Sec (FIXED) WORKING MODE - DELAY ON ( AUTO START) SIZE - 70 MM*80 MM*128 MM* WEIGHT - 430 GRAMS HOLD ON VOLTAGE AT - 260 V UNDER VOLTAGE RELEASE AT - 180 V 1) AVOID LOOSE CONNECTIONS IN YOUR AERIAL JUMBER, FUSES, SWITCH CONNECTIONS TO ENSURE THE LINE SYSTEM PERFECT/OTHERWISE THIS UNIT WILL GIVE NUISANCE TRIPPING. 2) AVOID UNBALANCE SUPPLY EXCEEDING 40 V BETWEEN LINE PHASES. 3) TO FIND OUT THE WORKING CONDITION OF THIS UNIT GIVE AUX SUPPLY BETWEEN 1& 2 FOLLOWING TO POWER ON BULB THE START BULB WILL GLOW AFTER THE DELAY TIME. 4) REMOVE LINE FUSE CARRIERS ONE BY ONE WHILE MOTOR IS RUNNING INLAND THIS UNIT WILL TRIP OFF IN 3 TO 5 SEC, IF NOT ADJUST THE PRESET ( THROUGH HOLE ) PROVIDED AT THE TOP GRADUALLY ( STEP BY STEP ) TOWARDS ARROW MARK SHOWN FOR RESUMPTION WAIT TILL THE DELAY TIME IS OVER WHILE IN AUTO START. 5) ENSURE MOTOR LOAD ( WATER PUMPING) SHOULD ALWAYS BE PRESET IN AUTO START CONDITION. 6) FOR EVERY INTERRUPTION OF THREE PHASE SUPPLY ( NOT INDIVIDUAL PHASE) AUTO START WILL GIVE DELAY START. 7) THIS UNIT IS NOT PROVIDED WITH OVER LOAD PROTECTION. 8) NOT SUITABLE FOR MANUAL AND SEMIAUTOMATIC STARTER. 9) CHECK PERIODICALLY THE CONDITION OF STARTER. 10) CONTACT RATING 6, 7 & 8 IS 7 AMP AT 415 V AC INDUCTIVE LOAD OF 0 8 PF. 11) USE 1/20 (OR) 1/18 (OR) 14/0.36 PVC COPPER WIRE FOR WIRING.... SINGLE PHASE PREVENTER FOR SUBMERSIBLE MOTOR SINGLE PHASE PREVENTER FOR SUBMERSIBLE MOTOR SINGLE PHASE PREVENTER FOR SUBMERSIBLE MOTOR BEST SINGLE PHASE PREVENTER IN COIMBATORE BEST SINGLE PHASE PREVENTER IN TAMILNADU BEST SINGLE PHASE PREVENTER IN INDIA BEST SINGLE PHASE PREVENTER AT COIMBATORE BEST SINGLE PHASE PREVENTER AT TAMILNADU BEST SINGLE PHASE PREVENTER AT INDIA SINGLE PHASE PREVENTER FOR AGRI SINGLE PHASE PREVENTER FOR AGRICULTURAL SINGLE PHASE PREVENTER FOR AGRICULTURE PREVENTER in Chennai PREVENTER in Madurai PREVENTER in Hosur PREVENTER in Nagercoil PREVENTER in Dindugal PREVENTER in Thanjavur PREVENTER in Trichy PREVENTER in Erode PREVENTER in Tuticorin PREVENTER in Tirunelveli PREVENTER in Tirupur PREVENTER in Salem PREVENTER in Vellore PREVENTER in Tiruvannamalai PREVENTER in Kallakurichi PREVENTER in Villupuram PREVENTER in Pondicherry PREVENTER in Krishnagiri PREVENTER in Hosur PREVENTER in Attur PREVENTER in Perambalur
