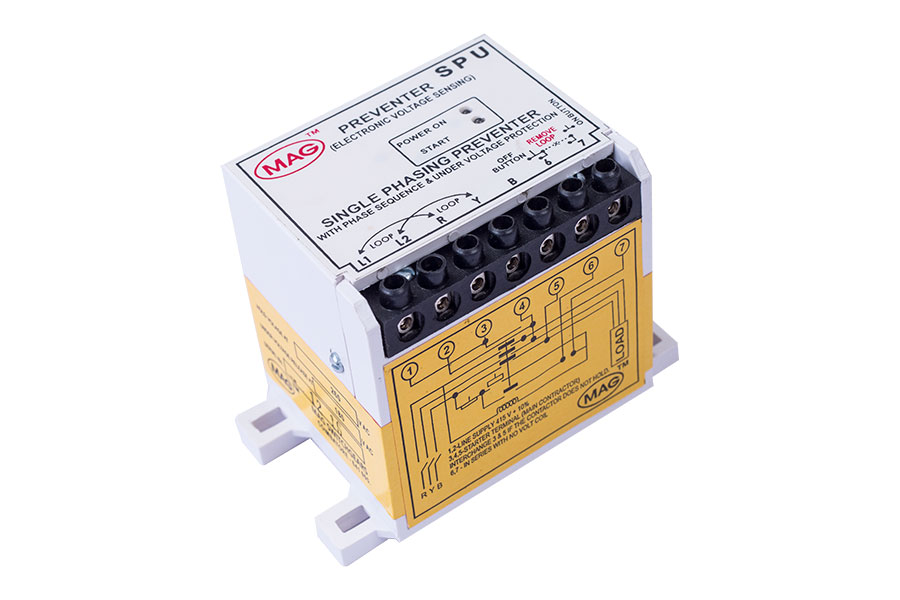

DESIGNED FOR SUBMERSIBLE ( MANUAL START) PHASE - ...

DESIGNED FOR SUBMERSIBLE ( MANUAL START) PHASE - THREE PHASE WORKING VOLTAGE AC 415 V RELAY - 7 AMPS TIMING RANGE - NO DELAY TIME WORKING MODE - ( NO AUTO START) SIZE - 70 MM*80 MM*112 MM* WEIGHT - 395 GRAMS HOLD ON VOLTAGE AT - 260 V UNDER VOLTAGE RELEASE AT - 180 V 1) AVOID LOOSE CONNECTIONS IN YOUR AERIAL JUMBER, FUSES, SWITCH CONNECTIONS TO ENSURE THE LINE SYSTEM PERFECT/OTHERWISE THIS UNIT WILL GIVE NUISANCE TRIPPING. 2) AVOID UNBALANCE SUPPLY EXCEEDING 40V BETWEEN LINE PHASES. 3) TO FIND OUT THE WORKING CONDITION OF THIS UNIT GIVE AUX SUPPLY BETWEEN 1& 2 FOLLOWING TO POWER ON BULB THE START BULB WILL GLOW AFTER THE DELAY TIME. 4) REMOVE LINE FUSE CARRIERS ONE BY ONE WHILE MOTOR IS RUNNING INLAND THIS UNIT WILL TRIP OFF IN 3 TO 5 SEC, IF NOT ADJUST THE PRESET ( THROUGH HOLE ) PROVIDED AT THE TOP GRADUALLY ( STEP BY STEP ) TOWARDS ARROW MARK SHOWN. 5) THIS UNIT IS NOT PROVIDED WITH OVER LOAD PROTECTION. 6) NOT SUITABLE FOR MANUAL AND SEMIAUTOMATIC STARTER. 7) CHECK PERIODICALLY THE CONDITION OF STARTER. 8) CONTACT RATING 6& 7 IS 6 AMP AT 415 V AC INDUCTIVE LOAD OF 0 8 PF. 11) USE 1/20 (OR) 1/18 (OR) 14/0.36 PVC COPPER WIRE FOR WIRING.... Single Phasing & Reverse phasing protection. Phase unbalance protection.
